Floating Solar Farms: Installing Panels on Farm Ponds and Lakes

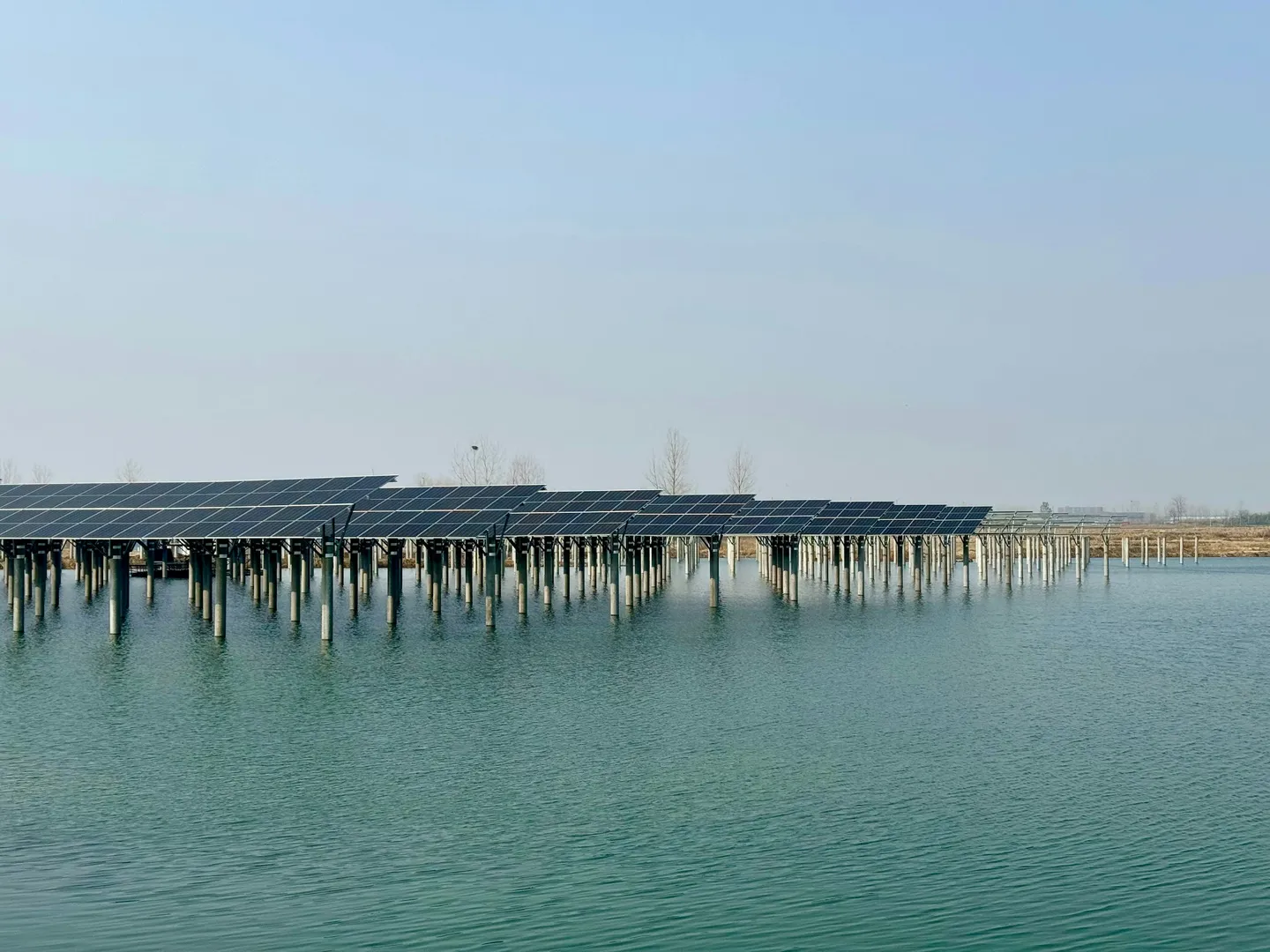

Photo by tian dayong on Unsplash
Floating solar systems represent a sophisticated evolution of traditional photovoltaic technology, adapted specifically for aquatic environments. These installations consist of standard solar panels mounted on specially designed floating platforms, typically constructed from high-density polyethylene (HDPE) that can withstand decades of water exposure. The modular nature of these systems allows remarkable scalability – from small 175kW installations perfect for irrigation ponds to massive arrays exceeding 300MW on industrial reservoirs.
The engineering behind these systems proves both elegant and robust. Ciel & Terre International, a pioneer in the field with over 330 projects across 30 countries, developed their Hydrelio® system to address the unique challenges of water-based solar. Meanwhile, companies like Ocean Sun push boundaries with ultra-thin membrane technologies certified to withstand typhoon-force winds up to 275 km/h. These platforms float just centimeters above the water surface, close enough to benefit from the cooling effect but high enough to avoid wave interference.
Anchoring these systems requires careful consideration of local conditions. Engineers typically choose between three primary approaches: gravity anchors using concrete blocks weighing 3-5 tons for smaller installations, helical screw anchors driven deep into the pond bed for permanent positioning, or elastic mooring systems that connect to shore-based points and accommodate significant water level fluctuations. The choice depends on factors including pond depth, seasonal water variations, and local weather patterns.
The Economics of Water-Based Solar
While floating solar installations typically cost 20-25% more than ground-mounted systems initially, their financial benefits often outweigh the higher upfront investment. According to industry analysis, installation costs range from $1.25 to $1.60 per watt, meaning a 1MW floating array requires approximately $1.29 million in capital investment. However, this figure tells only part of the story.
Federal and state incentives dramatically improve the economics of floating solar. The 30% federal Investment Tax Credit combines with USDA Rural Energy for America Program (REAP) grants that can cover up to 50% of project costs (maximum $1 million), potentially reducing net investment by up to 80%. A typical 1MW system qualifying for full incentives sees net costs drop to just $258,000 while generating annual energy savings of $188,000 at typical rural electricity rates. This creates remarkably short payback periods ranging from 1.1 to 4.8 years, depending on local electricity costs and incentive utilization.
The long-term financial advantages extend well beyond simple energy savings. Research shows floating systems generate 10-15% more electricity annually compared to ground-mounted installations due to the natural cooling effect of water maintaining optimal panel temperatures. Operating costs also prove lower, averaging $15.50/kW/year versus $18/kW/year for terrestrial systems thanks to reduced soiling and easier maintenance access.
Perhaps most significantly for agricultural operations, floating solar preserves valuable land for productive use. Far Niente Winery in California’s Napa Valley exemplifies this benefit – by floating their solar array on an irrigation pond instead of installing it on land, they protected an acre of vineyard worth $150,000 in annual grape production.
Environmental Considerations and Benefits
The environmental impacts of floating solar installations present a complex picture requiring careful management. Multiple studies document remarkable water conservation benefits, with evaporation reductions ranging from 61% to 80% from covered water surfaces. Research on Lake Nasser projects that 50% solar coverage could save 9 billion cubic meters of water annually – a critical benefit in water-stressed regions.
However, recent research raises important considerations about ecological impacts. A Cornell University study published in January 2025 found that floating solar on small ponds can temporarily increase greenhouse gas emissions as panels shade organic matter in shallow areas. The research emphasizes that larger water bodies and careful site selection minimize these concerns, with the climate benefits of renewable energy generation far outweighing temporary methane increases in most scenarios.
Water quality impacts vary significantly based on coverage ratios and pond characteristics. Moderate coverage between 30-60% often improves water quality by reducing algae growth and stabilizing temperatures. Studies show that excessive coverage above 70% can cause dissolved oxygen levels to drop below the 4-5 mg/L threshold critical for fish survival. The key lies in maintaining appropriate open water areas for gas exchange and preserving habitat diversity.
Wildlife interactions have proven surprisingly positive in many installations. UC Davis research documented waterbirds readily adapting to floating solar installations, with species like black-crowned night herons and black phoebes using panels as nesting sites. The floating platforms can even provide refuge areas for fish, offering shade and protection from predators.
Navigating Regulatory Requirements
The regulatory landscape for floating solar remains complex and varies significantly across jurisdictions. At the federal level, installations in waters of the United States may require permits from the Army Corps of Engineers under Section 404 of the Clean Water Act. Projects exceeding 1MW must file FERC Form 556 for Qualifying Facility certification under PURPA, enabling participation in utility power purchase programs.
State regulations add another layer of complexity. While 37 states delegate siting authority to local governments, specific requirements differ dramatically. California’s Solar Rights Act streamlines approvals for solar installations, while states like New Jersey mandate individual Section 401 water quality certifications for each project. Building permits universally apply, with fees ranging from $250 to $1,200 and processing times extending from 2 to 8 weeks depending on local efficiency.
Water rights and solar easements present unique challenges for floating installations. Property owners must ensure their solar development doesn’t interfere with existing water usage permits or riparian rights. The fluctuating nature of water levels requires easements that account for seasonal variations and potential conflicts with recreational or agricultural water uses.
Early engagement with permitting authorities proves essential. The timeline for securing all necessary approvals can extend from several months for straightforward projects to 8-10 years for installations requiring comprehensive Environmental Impact Statements under NEPA. Working with experienced developers familiar with local regulations significantly streamlines this process.
Learning from Real-World Installations
Successful floating solar projects worldwide provide valuable lessons for prospective adopters. Far Niente Winery’s pioneering 2008 installation of 177kW on their irrigation pond demonstrated the technology’s viability despite a hefty $4.2 million price tag. The system showcases 8-10% efficiency improvements over their ground-mounted array while significantly reducing pond evaporation and algae growth. Their experience proved that generous incentives combined with preserved land value could justify the higher initial investment.
New Jersey has emerged as a leader in large-scale floating solar adoption. The Canoe Brook Water Treatment Plant commissioned North America’s largest floating solar installation in January 2023, deploying 8.9MW across 17 acres of reservoir. This ambitious project now provides 95% of the facility’s electricity needs while generating enough clean energy to power 1,400 homes. The Sayreville wastewater treatment plant followed with a 4.4MW installation that required innovative anchoring solutions due to restrictions on bottom-mounting but now supplies 100% of facility power through a 15-year power purchase agreement.
International examples offer additional insights. Singapore’s massive 60MW Tengeh Reservoir project, one of the world’s largest inland floating solar farms, underwent comprehensive environmental assessment showing minimal impact on water quality and biodiversity. The 122,000-panel installation powers all five of Singapore’s water treatment plants while reducing carbon emissions by 32 kilotons annually. Their experience demonstrates that careful planning and ongoing monitoring enable successful integration of floating solar with critical water infrastructure.
Installation Process and Technical Requirements
Installing floating solar systems demands specialized expertise beyond traditional solar development. The process begins with comprehensive site assessment, including bathymetric surveys to map underwater topography and identify suitable anchoring locations. Ponds require minimum depths of 1.5-2 meters and at least 0.5 hectares of surface area for economically viable installations. Sites experiencing water level variations exceeding 3-4 meters annually may face stability challenges requiring advanced mooring solutions.
The physical installation follows a systematic approach designed to minimize environmental disruption. Crews typically assemble float sections on land, mount panels using marine-grade stainless steel hardware, and complete DC electrical connections with IP68-rated components before deployment. Specialized deployment techniques utilize ramps or cranes to place 20-50 panel sections into the water without damage, followed by interconnection using flexible joints that accommodate wave action and thermal expansion.
Electrical safety takes paramount importance in aquatic environments. All components must meet National Electrical Code requirements for wet locations, with enhanced grounding systems preventing dangerous stray currents. Marine-grade cables rated for continuous submersion connect floating arrays to shore-based inverters and transformers. Modern installations incorporate rapid shutdown capabilities and comprehensive monitoring systems that ensure safe operation while providing real-time performance data.
Maintenance in Aquatic Environments
Operating floating solar systems successfully requires adapting maintenance practices to the unique challenges of water-based installations. Regular inspection schedules typically include automated daily monitoring of power output and inverter status, monthly visual inspections from shore, and quarterly professional assessments requiring water access. Annual maintenance costs generally run 1-2% of capital investment, comparable to ground-mounted systems despite the aquatic environment.
One surprising benefit of floating installations is reduced panel soiling. Natural water spray and higher humidity levels keep panels cleaner than their land-based counterparts. When cleaning becomes necessary, specialized techniques use soft-bristle brushes and filtered pond water to avoid introducing harmful chemicals. Maintenance crews must follow strict safety protocols, including mandatory life jacket use, buddy systems, and weather monitoring to ensure safe working conditions.
Cold climate installations face unique challenges from ice formation. Research on freezing conditions shows that properly designed systems can withstand significant ice pressure, though special float designs with reinforced edges prove essential. Some operators install bubbler systems to prevent complete freezing around critical components, while others simply allow systems to ride out winter conditions with minimal intervention.
Integration with Agricultural Operations
Successful floating solar installations enhance rather than hinder farm operations through thoughtful integration strategies. For irrigation ponds, maintaining 40-60% coverage preserves essential water access while dramatically reducing evaporation losses. Studies indicate that farms can save millions of gallons annually through reduced evaporation, with the added benefit of improved water quality from decreased algae growth and temperature stability.
Livestock watering requires modified approaches that balance energy generation with animal access. Installations typically limit coverage to 30-50% and designate specific access corridors with safety barriers preventing animal contact with electrical equipment. Progressive farms incorporate solar-powered automated watering systems, creating energy independence for water management while improving operational efficiency.
The integration extends beyond basic compatibility to create synergistic benefits. Shaded water areas often improve conditions for aquaculture, with cooler temperatures reducing fish stress during hot summer months. Some installations incorporate aeration systems powered directly by the solar array, improving water quality for both energy generation and agricultural use. Multi-use planning accommodates recreational activities by maintaining open water zones for fishing while establishing clear safety protocols that protect both users and equipment.
Best Practices and Lessons Learned
Years of industry experience have crystallized into clear best practices for floating solar success. Optimal coverage ratios vary significantly by use case: irrigation ponds perform well at 40-60% coverage, livestock ponds require 30-50% to maintain access, while dedicated energy ponds can achieve up to 70% coverage without significant ecological impact. Rectangular pond shapes allow more efficient array layouts than irregular geometries, though modern design software can optimize configurations for any shape.
Safety protocols must address the unique hazards of water-based renewable energy operations. Comprehensive water safety training, mandatory personal flotation device use, and buddy systems for all personnel form the foundation of operational safety. Electrical safety requires specialized lockout/tagout procedures, insulated tools rated for wet conditions, and suspension of operations during severe weather. Regular emergency response drills involving local authorities ensure rapid, coordinated responses to any incidents.
Common mistakes to avoid include inadequate site assessment leading to anchoring failures, underestimating the importance of water quality monitoring, and deferring maintenance due to access challenges. Successful operators emphasize the importance of selecting experienced installers familiar with marine environments and establishing clear communication channels between solar operators and farm managers to coordinate maintenance with agricultural activities.
Future Innovations and Market Growth
The floating solar industry continues rapid technological advancement with innovations promising even greater efficiency and versatility. Bifacial panels capture reflected light from water surfaces for 15-25% additional energy generation, while single-axis tracking systems that follow daily sun movement push efficiency gains even higher. The Netherlands pioneered sun-tracking floating systems that combine multiple technologies for maximum energy harvest.
Market projections indicate explosive growth ahead. Wood Mackenzie forecasts global floating solar capacity reaching 77GW by 2033, with agricultural applications driving significant adoption. The World Bank estimates potential capacity could reach 400GW by 2030 as costs decrease and experience accumulates across diverse applications.
Integration opportunities expand beyond simple energy generation. Hybrid renewable systems combining floating solar with pumped hydro storage create dispatchable clean energy resources. Advanced materials research promises improved durability and complete recyclability, addressing end-of-life sustainability concerns. As climate change intensifies pressure on water resources and agricultural productivity, floating solar emerges as a critical technology enabling sustainable intensification of rural land use.
Making the Decision
Floating solar technology offers rural property owners a unique opportunity to generate clean energy while preserving farmland and conserving water resources. With proper planning, professional installation, and diligent maintenance, these systems deliver compelling returns through energy savings, reduced water loss, and preserved land value. The convergence of proven technology, improving economics, and environmental benefits makes this an opportune time for forward-thinking farmers to explore floating solar’s potential.
Success requires careful consideration of site characteristics, regulatory requirements, and integration with existing operations. Yet the examples from wineries in California to water treatment plants in New Jersey demonstrate that challenges can be overcome with proper planning and expertise. As one New Jersey project developer noted, “We’re not just generating clean energy – we’re creating a model for sustainable water and land management that others can follow.”
For rural property owners with suitable water bodies, floating solar represents more than an energy solution – it’s an investment in the farm’s future resilience and productivity. The technology transforms passive water storage into active energy generation while enhancing rather than compromising agricultural operations. In an era demanding both food security and climate action, floating solar offers a practical path forward that addresses both imperatives.
