Ham Radio Networks: Emergency Communication for Rural Areas

When disasters sever the communication lifelines that modern society depends upon, rural communities face particularly acute isolation. Cell towers topple, internet connections vanish, and landlines fall silent, leaving entire regions disconnected from emergency services and loved ones. In these critical moments, amateur radio networks emerge as the backbone of emergency communication, operating independently of commercial infrastructure with proven reliability spanning decades of disaster response.

Amateur radio, commonly known as ham radio, represents a government-regulated communication service that enables licensed operators to transmit across town or around the globe using allocated radio frequencies. The technology’s resilience became undeniably clear during Hurricanes Katrina and Maria, when ham radio operators maintained critical communication links after commercial systems collapsed entirely. These volunteer operators handled everything from coordinating medical evacuations to relaying welfare messages between separated families.

The Rural Communication Advantage

Rural properties offer inherent advantages for ham radio operations that urban environments simply cannot match. Wide-open spaces accommodate antenna systems that would violate city ordinances or homeowner association rules. Lower population density translates directly to reduced radio frequency interference, enabling clearer signals and more reliable connections. Perhaps most importantly, the self-sufficiency mindset common in rural communities aligns naturally with amateur radio’s emphasis on technical knowledge and emergency preparedness.

The technology operates without dependency on commercial power grids or internet backbones. A basic handheld transceiver powered by a car battery can reach repeater stations hundreds of miles away, while HF equipment enables worldwide communication without any intervening infrastructure whatsoever. This independence from commercial systems makes ham radio particularly valuable for rural areas where infrastructure damage during disasters can take weeks or months to repair.

Professional emergency services have long recognized amateur radio’s value during crisis situations. The Amateur Radio Emergency Service (ARES) and Radio Amateur Civil Emergency Service (RACES) formalize the relationship between volunteer operators and government agencies. During major disasters, these trained volunteers staff emergency operations centers, establish communication networks between isolated disaster sites and command posts, and provide the redundancy that saves lives when primary systems fail.

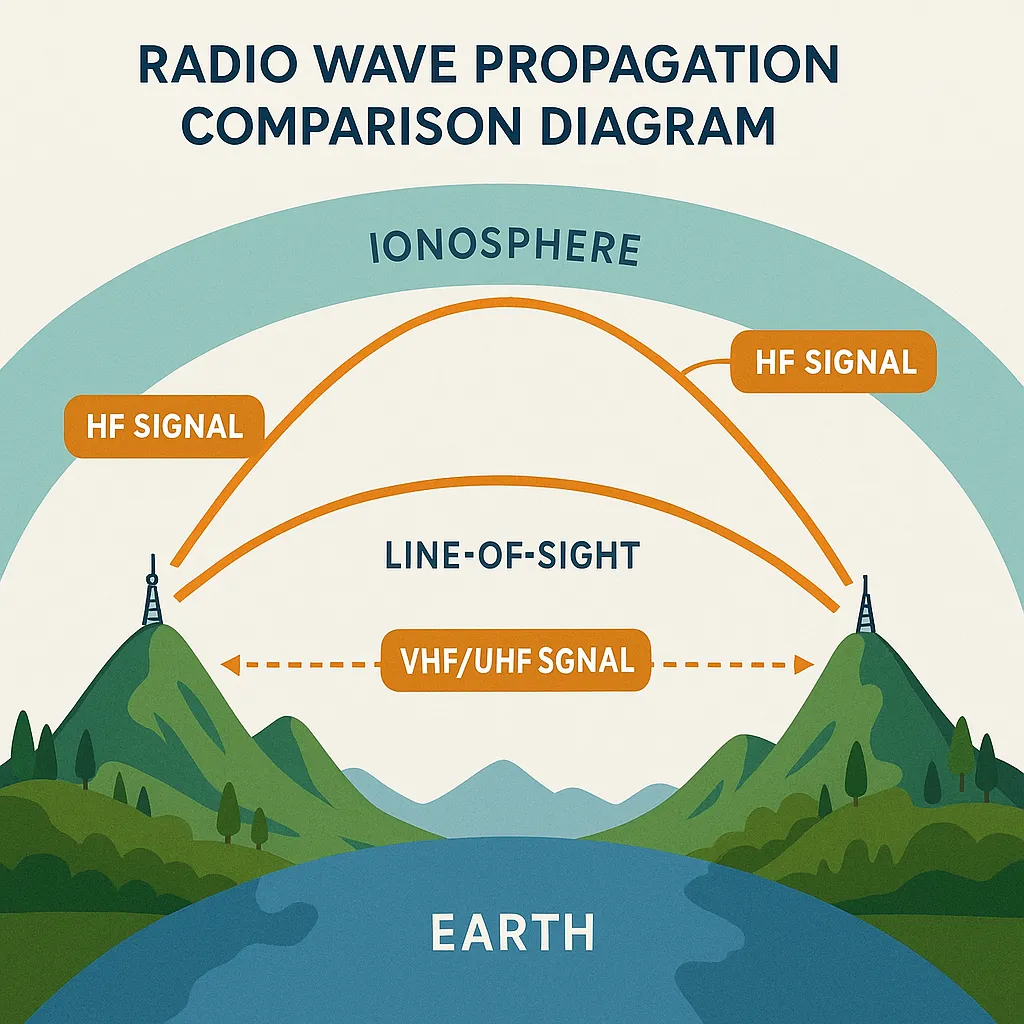

Radio Waves and Rural Reach

Understanding how ham radio achieves its remarkable range helps explain why rural locations excel for emergency communications. Amateur operators access a vast spectrum of frequencies, from 1.8 MHz through microwave bands above 1 GHz, each with distinct propagation characteristics that determine effective communication distance and reliability.

VHF and UHF frequencies primarily use line-of-sight propagation, making elevation and clear horizons crucial for extended range. Rural hilltops and open farmland provide ideal conditions for these signals to travel 50-100 miles through repeater networks. In contrast, urban canyons of concrete and steel create dead zones and multipath interference that degrades signal quality.

The magic of long-distance communication happens on HF bands, where signals bounce off the ionosphere in a phenomenon called skywave propagation. A modest 100-watt transmitter connected to a simple wire antenna strung between trees can establish reliable contact with stations thousands of miles away. This capability proves invaluable when regional disasters knock out conventional communication infrastructure across entire states or provinces.

Digital modes expand ham radio beyond voice communication. Winlink provides email functionality over radio waves, enabling detailed message traffic when internet connections fail. APRS (Automatic Packet Reporting System) tracks asset locations and exchanges short messages automatically, while newer weak-signal modes like FT8 punch through interference that would make voice communication impossible.

Navigating Global Licensing Systems

Amateur radio licensing follows remarkably similar patterns worldwide, reflecting international treaty obligations and the global nature of radio propagation. Most developed nations maintain reciprocal operating agreements, allowing licensed amateurs to operate abroad with minimal paperwork.

The United States Federal Communications Commission offers three license classes, each requiring passage of a multiple-choice examination. The entry-level Technician license opens access to local VHF/UHF repeaters and limited HF privileges sufficient for most emergency communication needs. Upgrading to General class adds extensive HF operating privileges, while Amateur Extra removes all frequency restrictions. Total costs including exam and application fees typically run $50-85.

Canada’s licensing system through ISED follows a similar progression with Basic and Advanced qualifications. The Basic certificate requires passing a 100-question exam with 70% accuracy, with immediate issuance upon passing and no recurring fees. European nations generally implement a three-tier Foundation, Intermediate, and Full license structure, with the CEPT agreement enabling cross-border operation throughout most of Europe.

The COVID-19 pandemic accelerated adoption of online amateur radio testing, which continues to benefit rural residents who might otherwise travel hours to reach examination sessions. Multiple volunteer examiner coordinators now offer fully remote testing with online proctoring, removing geographic barriers to licensing.

Selecting Equipment for Reliability

Building an emergency communication station requires balancing capability, reliability, and budget. The fundamental components remain consistent: a transceiver to transmit and receive signals, an antenna system to radiate and capture radio waves, and a power source to run everything when the grid fails.

Handheld transceivers offer the most accessible entry point for new operators. The Yaesu FT-60R, priced around $160, has earned its reputation through years of reliable emergency deployment. Its military-specification construction withstands harsh conditions while delivering clear audio and extended battery life. Budget-conscious beginners often start with the Baofeng UV-5R at roughly $35, though its lower build quality makes it better suited for backup than primary emergency use.

Mobile and base station radios multiply communication range through higher power output. A typical dual-band mobile unit produces 50 watts on VHF and 35 watts on UHF, extending reliable communication range by a factor of five to ten compared to handhelds. The Yaesu FT-8800R and Kenwood TM-V71A have both proven themselves in emergency service, offering the durability and features that matter when lives depend on maintaining communications.

For regional and global reach, HF transceivers become essential. The Yaesu FT-891 provides 100 watts across all HF bands in a compact package suitable for both fixed and portable operation. Those seeking cutting-edge technology might consider the Icom IC-7300, which combines excellent receiver performance with modern digital signal processing that pulls weak signals from heavy interference.

Antenna Systems Shape Success

No amount of transmitter power compensates for a poor antenna system. Height and efficiency determine communication effectiveness far more than raw wattage. A simple wire dipole elevated 40 feet will consistently outperform an expensive radio connected to a compromised antenna at ground level.

Rural properties excel for antenna installations precisely because space and height restrictions that plague urban operators simply don’t apply. That hundred-foot pine tree becomes an antenna support. The unused pasture accommodates a rhombic antenna for intercontinental communication. Even a basic wire antenna performs better when it doesn’t compete with nearby electrical wiring and metal structures for radiation patterns.

VHF and UHF operations benefit from vertical antennas that provide omnidirectional coverage. The Diamond X-50A and Cushcraft AR-270B represent solid commercial choices, though many operators achieve excellent results with homemade J-pole antennas constructed from copper pipe or ladder line. The key lies in getting these antennas as high as practical, where line-of-sight coverage expands dramatically.

HF antennas range from simple to elaborate depending on available space and communication goals. A basic dipole costs under $100 in materials and provides reliable regional coverage. End-fed antennas offer multiband capability with minimal real estate requirements. Those blessed with acreage might consider rhombic or beverage antennas that deliver exceptional long-distance performance in specific directions.

Emergency Networks in Action

Structured emergency communication networks transform individual operators into coordinated response teams. The Amateur Radio Emergency Service (ARES) maintains the primary interface between amateur operators and served agencies including emergency management, Red Cross, and hospitals. This volunteer organization operates through hierarchical coordination, with Local Emergency Coordinators managing city or county programs that roll up through District and Section levels.

Participation requires more than just a license and radio. ARES volunteers complete FEMA training courses including IS-100, IS-200, IS-700, and IS-800 to understand incident command structures and emergency management principles. Regular training exercises test both equipment and procedures, ensuring readiness when activation occurs.

The Radio Amateur Civil Emergency Service (RACES) operates under government authorization with specific activation protocols during declared emergencies. While more restrictive than ARES, RACES provides official status that can be crucial for accessing disaster areas and coordinating with government agencies. Many operators maintain dual ARES/RACES credentials for maximum flexibility.

Message handling follows time-tested procedures refined through decades of emergency response. The National Traffic System provides standardized formats for everything from routine welfare checks to urgent medical traffic. Operators learn to prioritize messages by precedence, route them efficiently through available networks, and maintain the accuracy essential for emergency communications.

Powering Through Grid Failures

Emergency communications demand power systems that operate independently of commercial electricity. Solar power has emerged as the optimal solution for sustained amateur radio operations, particularly when paired with modern battery technology and efficient equipment designs.

System sizing depends on operational requirements and expected autonomy. A QRP (low power) station running 5-10 watts might operate indefinitely on 100 watts of solar panels and a 50 amp-hour battery. Full-power 100-watt stations require proportionally larger systems, typically 300-500 watts of panels feeding 200+ amp-hour battery banks for multi-day autonomous operation.

Lithium iron phosphate (LiFePO4) batteries have revolutionized portable power. Unlike traditional lead-acid batteries that provide only 50% usable capacity, LiFePO4 batteries deliver 90-100% of their rated capacity while surviving 2,000 or more charge cycles. The weight savings alone justify the higher initial cost for portable operations, while the extended lifespan makes them economical for fixed installations.

Charge controller selection significantly impacts both system efficiency and radio frequency interference. While PWM controllers work adequately for smaller installations, MPPT controllers deliver 20-30% better energy harvest from solar panels. Controllers designed specifically for communication applications, like the Genasun GV-10L, minimize RF noise that could interfere with weak signal reception.

Backup generators provide essential redundancy when extended cloud cover depletes battery reserves. Inverter generators such as the Honda EU2200i produce clean power with minimal radio frequency interference while efficiently charging batteries. Running generators intermittently for battery charging rather than continuous operation reduces fuel consumption and noise while maintaining communication capability.

Implementation Strategy for Rural Properties

Successful emergency communication capability develops through progressive phases rather than attempting to build everything at once. Starting with basic local communication and expanding based on experience prevents overwhelming newcomers while ensuring each component gets properly integrated and tested.

Initial implementation focuses on licensing and basic VHF/UHF capability. After passing the Technician exam, new operators should acquire a quality handheld radio and magnetic mount mobile antenna. This minimal investment enables participation in local nets and ARES activities while learning operational procedures and making contacts within the amateur radio community. Joining local ARRL sections provides mentorship opportunities and access to group training exercises.

The second phase expands range and capability. Upgrading to General class privileges opens HF bands for long-distance communication without infrastructure dependency. Installing permanent antennas takes advantage of rural property benefits, whether that means dipoles suspended from trees or vertical antennas mounted on outbuildings. Solar power systems ensure operation during extended power outages, while participation in emergency exercises builds confidence and competence.

Advanced implementation incorporates digital modes, remote operation capability, and community leadership roles. Establishing Winlink gateways provides email connectivity for the broader community during internet outages. Some operators install repeaters on elevated rural property, extending VHF/UHF coverage across entire counties. Taking on Emergency Coordinator positions enables direct contribution to community resilience.

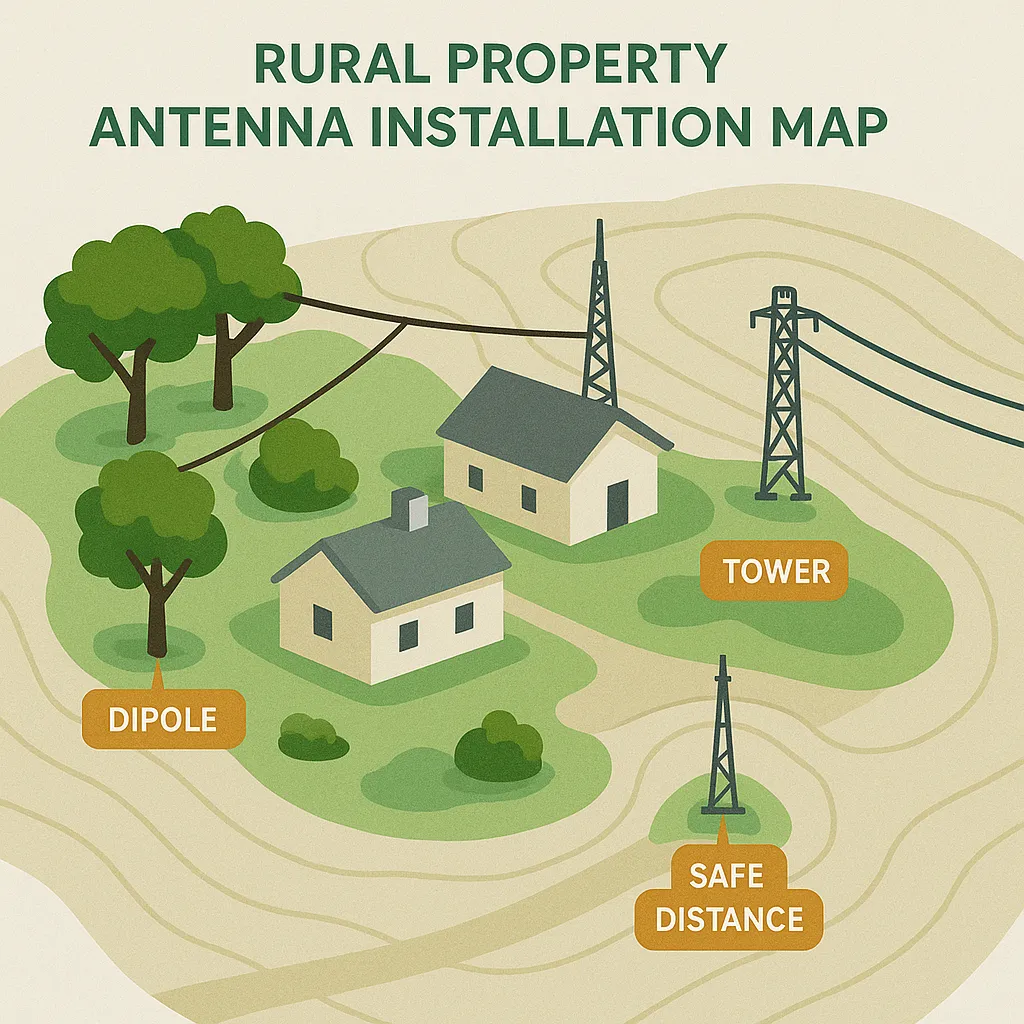

Site Planning Maximizes Rural Advantages

Rural properties offer antenna installation opportunities unavailable to urban operators, but maximizing these advantages requires thoughtful planning. Elevation provides the single greatest improvement to VHF/UHF range, making hilltop locations invaluable for repeater sites and emergency communication stations. Even modest elevation gains of 50-100 feet can double or triple coverage area compared to valley locations.

Natural antenna supports abound on rural properties. Mature trees provide free antenna elevation without the expense and maintenance of towers. Rock outcroppings offer solid anchoring points for guy wires. Open fields accommodate long wire antennas that would be impossible in subdivisions. The key lies in identifying these resources during site planning rather than after equipment purchase.

Future expansion deserves consideration during initial installation. Running extra conduit for additional coax cables costs little during initial construction but becomes expensive later. Oversizing electrical service to the radio room accommodates growth. Planning antenna locations to avoid interference between different bands prevents problems as stations expand. Documentation of cable runs, grounding systems, and antenna configurations saves troubleshooting time and enables efficient system expansion.

Training Beyond the License

Effective emergency communication requires skills beyond those tested in licensing examinations. Net procedures, message handling, and interoperability with served agencies demand regular practice to maintain proficiency. Weekly participation in traffic nets provides structured practice while contributing to the communication infrastructure that activates during emergencies.

Equipment familiarity prevents fumbling during high-stress deployments. Every control should become muscle memory through regular use. Programming memories for emergency frequencies before they’re needed eliminates confusion during activation. Understanding antenna tuner operation, power system management, and basic troubleshooting keeps stations operational when technicians aren’t available.

Leadership development ensures emergency communication networks have trained coordinators when disasters strike. The ARRL offers Emergency Coordinator training through online courses and regional conferences. Incident Command System training through FEMA provides the framework for integrating amateur radio with professional emergency management. Technical specialist courses cover topics from emergency power to antenna modeling, building expertise that benefits the entire amateur radio community.

RF Safety in Rural Installations

Amateur radio stations must comply with RF exposure regulations that protect operators and neighbors from excessive electromagnetic fields. Rural installations often achieve compliance naturally through distance, as fields decrease rapidly with separation from antennas. However, documentation remains mandatory regardless of location.

The FCC strengthened RF exposure rules in 2020, requiring all amateur stations to perform exposure assessments. Online calculators simplify this process, though rural operators should pay particular attention to areas where people might work or gather near antennas. Farm buildings, equipment sheds, and property boundaries all deserve consideration during evaluation.

Lightning protection becomes critical for rural installations, particularly those using tall antennas or hilltop locations. Proper grounding systems require multiple ground rods bonded together with heavy copper wire, creating a low-impedance path for lightning energy. Disconnecting antennas during thunderstorms provides the ultimate protection, though automatic disconnect systems offer convenience for remote sites.

Economic Considerations for Rural Operators

Amateur radio emergency communication systems deliver exceptional value when properly implemented. Entry-level capabilities cost $500-1,500 including licensing, basic equipment, and simple antennas. This modest investment provides local and regional communication capability independent of commercial infrastructure. Comprehensive stations with HF capability, emergency power, and extensive antenna systems might reach $5,000-15,000 but offer global communication range and community service opportunities.

Rural properties often reduce implementation costs through natural advantages. Free antenna supports from trees eliminate tower expenses. Available space enables efficient wire antennas costing tens rather than thousands of dollars. Distance from neighbors reduces the need for expensive filters to prevent interference. Lower noise floors mean modest stations achieve communication ranges that would require high power in urban environments.

Progressive implementation spreads costs across months or years while building experience with each component. Starting with handheld radios and advancing to base stations allows learning from initial choices. Used equipment from estate sales and silent key auctions provides quality gear at reduced prices. Group purchases through amateur radio clubs leverage collective buying power for significant discounts.

Beyond Emergency Response

While emergency communication provides the primary justification for rural ham radio investment, the technology offers benefits extending well beyond disaster response. Technical education gained through amateur radio applies to many fields, from electronics to computer networking. The problem-solving skills developed troubleshooting radio issues translate directly to other technical challenges common in rural self-sufficiency.

Community connections formed through amateur radio strengthen rural social networks. Weekly nets maintain contact between isolated homesteads. Technical mentoring helps newcomers develop skills. Public service events like marathons and parades provide practice while supporting community activities. These relationships prove invaluable during emergencies when formal communication systems fail.

The Amateur Radio Emergency Preparedness Act, currently under consideration by Congress, recognizes amateur radio’s critical role in emergency communication. This legislation would prevent homeowner associations from prohibiting amateur radio antennas, acknowledging that communication capability serves public safety interests that transcend aesthetic concerns.

Taking Action Today

The path to emergency communication capability begins with a single step: studying for your amateur radio license. Free online resources like HamStudy.org provide everything needed to pass the Technician examination. Local radio clubs offer in-person classes that combine technical education with hands-on experience. The 35-question multiple choice test requires only basic electronics knowledge and familiarization with operating procedures.

While studying, research local amateur radio organizations and emergency groups. Contact your county ARES Emergency Coordinator to understand how amateur radio supports local emergency response. Attend club meetings as a visitor to meet experienced operators and learn about local repeater systems. Monitor amateur radio frequencies with an inexpensive scanner or online SDR receiver to hear actual operations.

After passing your license exam, invest in quality equipment appropriate for your communication goals. That might mean a simple handheld radio for local coordination or a complete HF station for long-distance emergency communication. Focus on reliability over features, choosing proven designs that will operate dependably when needed most.

Rural residents possess natural advantages for implementing amateur radio emergency communications. Space for effective antennas, quiet radio frequency environments, and self-reliant mindsets create ideal conditions for building robust communication capabilities. When disasters strike and commercial systems fail, amateur radio networks maintain the communication links that save lives and coordinate response efforts. The technology stands ready, waiting only for motivated individuals to join the ranks of amateur radio operators who proudly serve when all else fails.
